App Inventor Extensions

Battery Manager Extension

See the App Inventor Extensions document about how to use an App Inventor Extension.

For questions about this extension or bug reports please start a new thread in the App Inventor community. Thank you.

For feature requests please contact me by email. To be a sponsor of a new method already is possible starting from only 10 USD! With your contribution you will help the complete App Inventor community. Thank you.

Jun 20th, 2016: Version 1 of the Battery Manager Extension released for App Inventor version nb149 and Companion version 2.37.

Aug 11th, 2016: Version 1a: avoid DX execution failed error: build each extension separately

March 11th, 2019: Version 2: CurrentNow, CurrentAvg, Capacity, ChargeCounter, EnergyCounter, Technology added

Aug 24th, 2021: Version 3: Dropdown helper blocks added.

Note: this release is not compatible with the previous version. Only use the extension for new projects.

Description

Battery Manager extension.
Required permissions: none

Properties

Returns the current health constant.
Possible values are: cold, dead, good, overheat, over voltage, unknown, unspecified failure.

Returns the battery level.
Possible values are between 0% and 100%.

Returns the battery plugged status.
Possible values are: usb, ac, wireless or unknown.

Returns the battery status.
Possible values are: charging, full, discharging, not charging or unknown.

Returns the battery temperature in celcius.

Returns the battery voltage level in millivolts.

Returns remaining battery capacity as an integer percentage of total capacity (with no fractional part).
Requires API Level 21, Android 5, Lollipop.
Thank you Tal for being the sponsor of this property.

Returns average battery current in microamperes, as an integer. Positive values indicate net current entering the battery from a charge source, negative values indicate net current discharging from the battery. The time period over which the average is computed may depend on the fuel gauge hardware and its configuration.
Requires API Level 21, Android 5, Lollipop.
Thank you Tal for being the sponsor of this property.

Returns Instantaneous battery current in microamperes, as an integer. Positive values indicate net current entering the battery from a charge source, negative values indicate net current discharging from the battery.
Requires API Level 21, Android 5, Lollipop.
Thank you Tal for being the sponsor of this property.

Returns Battery capacity in microampere-hours, as an integer. If the platform does not provide the property queried, this value will be Long.MIN_VALUE.
Requires API Level 21, Android 5, Lollipop.
Thank you Tal for being the sponsor of this property.

Returns Battery remaining energy in nanowatt-hours, as a long integer. If the platform does not provide the property queried, this value will be Long.MIN_VALUE.
Requires API Level 21, Android 5, Lollipop.
Thank you Tal for being the sponsor of this property.

Returns the battery technology.
Thank you Tal for being the sponsor of this property.

Events

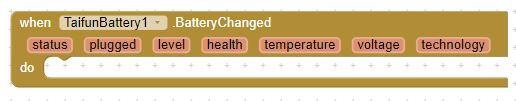

Event indicating that battery changed.

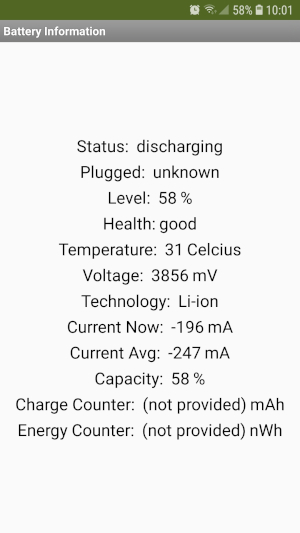

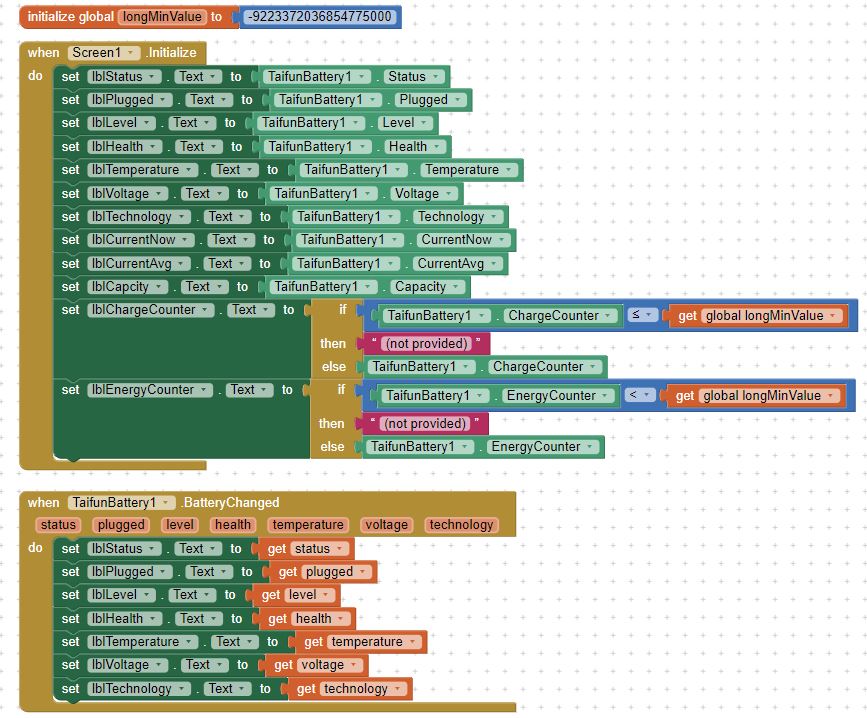

Example App: Battery Information

Test

Tested successfully on Samsung Galaxy A5 (2017) running Android 8.

Terms and Conditions

• Have fun and use this extension in your App Inventor projects! Pura Vida!
• THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
• This is is the only authorized place to download this extension. It is not allowed to host this extension somewhere else and offer it for others to download, be it on another website or market place or similar. The reason is, everybody should be able to have the opportunity to donate something in case you like my work. You are allowed to provide a link to this site, so others can download the extension here. You will find the most up to date version always here including documentation and usage examples. Thank you for your kind understanding.

Download

Download TaifunBattery extension V2 (aix file)
Download TaifunBattery extension V3 (aix file)
Download Battery Information Test V3 (aia file)
